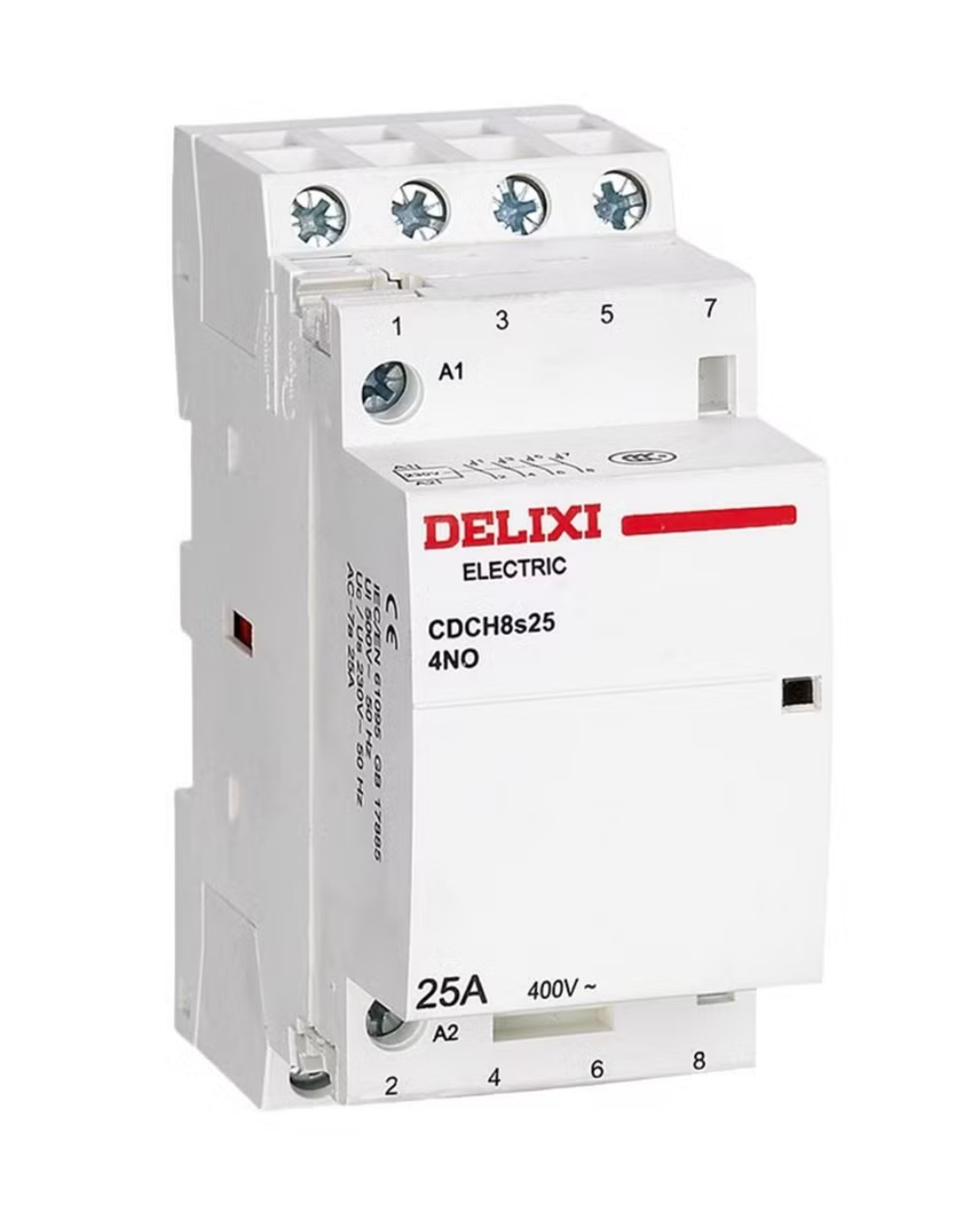

CDCH8S Modular Contactor – Compact DIN Rail Control Solution for Electrical Automation
The Delixi CDCH8S Modular Contactor Series is designed for reliable switching and control of electrical circuits in residential, commercial, and industrial electrical installations. Engineered with compact DIN rail mounting capability, the CDCH8S series delivers dependable performance for lighting systems, HVAC applications, motor control, power distribution, and automation systems.
Manufactured according to IEC 61095 international standards, these modular contactors provide safe and efficient circuit control while minimizing installation space requirements.
The CDCH8S series is available in 2 Pole and 4 Pole configurations, supporting current ratings from 20A up to 63A, making it suitable for various electrical switching and automation requirements.
Its modular design ensures easy installation inside distribution boards and control panels while delivering stable operational performance for demanding applications.
Key Features
✔ Compact modular DIN rail design
✔ Available in 2 Pole and 4 Pole models
✔ Current ratings from 20A to 63A
✔ Reliable electrical switching performance
✔ Suitable for residential, commercial, and industrial applications
✔ IEC 61095 compliant construction
✔ Low operating noise
✔ Efficient power control and automation capability
✔ Space-saving modular installation design
✔ High electrical endurance and durability
✔ Suitable for lighting and motor control applications
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Series | CDCH8S |
| Product Type | Modular Contactor |
| Pole Configuration | 2P, 4P |
| Current Ratings | 20A – 63A |
| Rated Frequency | 50/60Hz |
| Standard | IEC 61095 |
| Installation Type | DIN Rail Mount |
| Contact Configuration | 1NO+1NC / 2NO+2NC |
Available Models
| Model | Pole | Rating | Contact Type |
|---|---|---|---|
| CDCH8s20 | 2 Pole | 20A | 1NO + 1NC |
| CDCH8s20 | 2 Pole | 40A | 1NO + 1NC |
| CDCH8s20 | 4 Pole | 20A | 2NO + 2NC |
| CDCH8s25 | 4 Pole | 25A | 2NO + 2NC |
| CDCH8s40 | 4 Pole | 40A | 2NO + 2NC |
| CDCH8s63 | 4 Pole | 63A | 2NO + 2NC |
Applications
-
Lighting control systems
-
HVAC equipment switching
-
Building automation systems
-
Residential distribution boards
-
Industrial control panels
-
Motor control circuits
-
Commercial electrical installations
-
Power distribution systems
-
Smart building infrastructure
-
Energy management systems
The Delixi CDCH8S Modular Contactor Series provides compact design, reliable switching performance, and efficient electrical control capabilities for modern electrical automation and power management systems.
