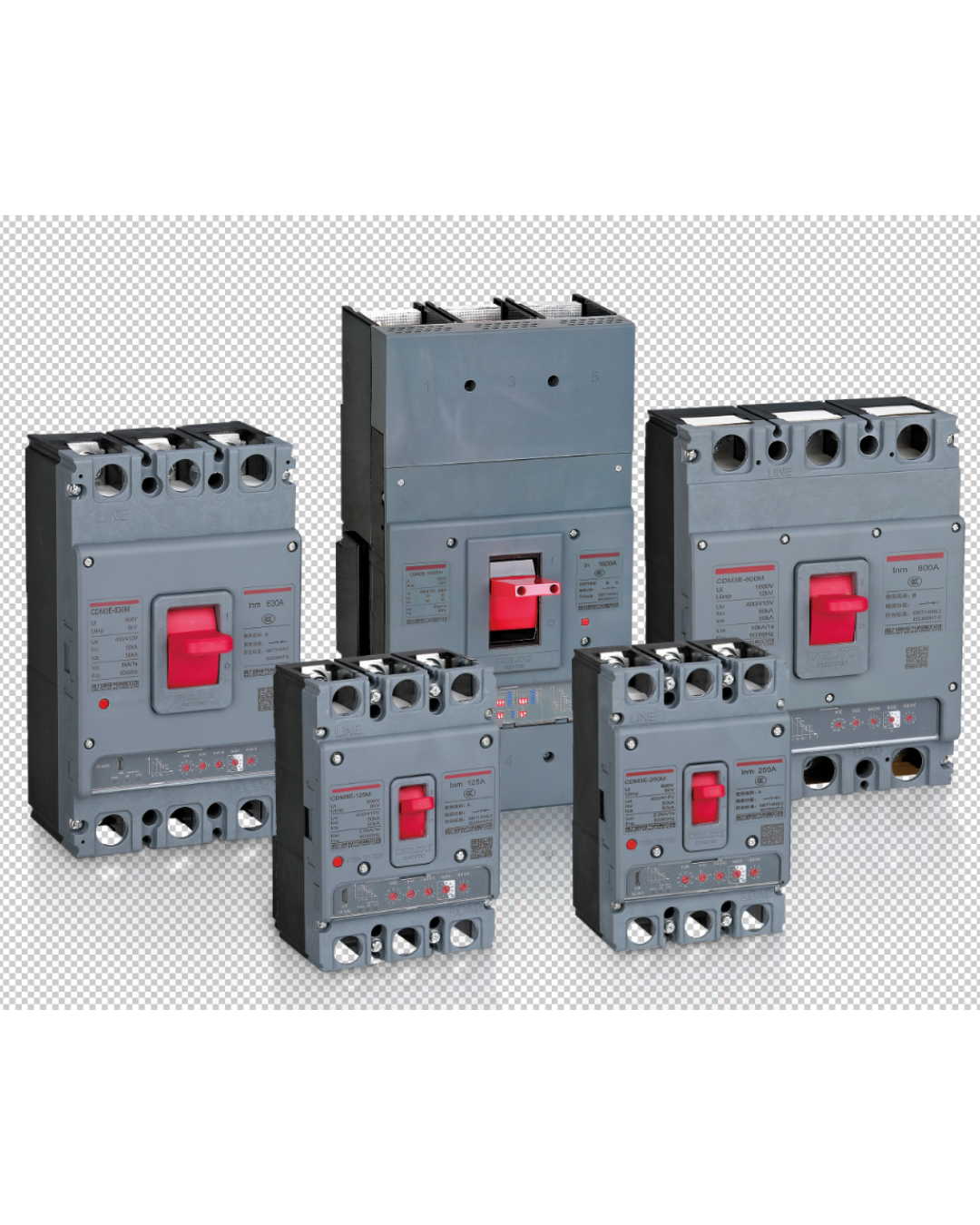

CDM3E Electronic MCCB – 4 Pole | Adjustable LSI Electronic Trip | 32A–800A | 50kA ICU

CDM3E Electronic MCCB – 4 Pole | Adjustable LSI Electronic Trip | 32A–800A | 50kA ICU

Rs.85,000.00
The Delixi CDM3E Electronic Molded Case Circuit Breaker (MCCB) is an advanced industrial circuit protection solution engineered for electrical distribution systems requiring electronic trip protection, adjustable fault management, and enhanced protection precision. Built with LSI...

The Delixi CDM3E Electronic Molded Case Circuit Breaker (MCCB) is an advanced industrial circuit protection solution engineered for electrical distribution systems requiring electronic trip protection, adjustable fault management, and enhanced protection precision.

Built with LSI (Long-Time, Short-Time, Instantaneous) Electronic Trip technology, the CDM3E Series delivers intelligent overload protection and improved fault coordination compared to conventional thermal-magnetic MCCBs.

The adjustable electronic protection mechanism allows optimized system configuration for industrial facilities, switchgear panels, critical infrastructure, manufacturing plants, and heavy-duty power distribution systems.

Designed in a 4 Pole (4P) configuration, this MCCB provides protection suitable for complex three-phase electrical networks requiring neutral line protection and enhanced operational reliability.

Supporting current ratings from 32A up to 800A and providing a fault interruption capability of 50kA ICU, the CDM3E series is engineered for demanding industrial environments where protection precision and reliability are essential.

Manufactured according to IEC 60947-2 international standards, the Delixi CDM3E combines intelligent electronic protection with industrial-grade performance.

Key Features

✔ Advanced LSI Electronic Trip Protection (Long-Time, Short-Time, Instantaneous)
✔ Adjustable electronic protection settings
✔ High fault interruption capability (50kA ICU)
✔ Current ratings from 32A to 800A
✔ 4 Pole (4P) configuration
✔ Enhanced overload protection
✔ Precise short-circuit protection
✔ Improved selectivity and fault coordination
✔ Industrial-grade molded case construction
✔ Rated operating frequency: 50/60Hz
✔ Suitable for critical electrical distribution applications
✔ IEC 60947-2 compliant

Technical Specifications

Parameter Specification
Product Series CDM3E
Product Type Electronic Molded Case Circuit Breaker (MCCB)
Pole Configuration 4 Pole (4P)
Protection Technology Electronic Trip (LSI)
Trip Functions Long-Time, Short-Time, Instantaneous
Adjustment Type Adjustable Electronic Protection
Rated Frequency 50/60Hz
Current Rating Range 32A – 800A
Breaking Capacity (ICU) 50kA
Frame Sizes 125 / 250 / 400 / 630 / 800
Standard Compliance IEC 60947-2

Available Models

Frame 125 – 50kA ICU

CDM3E-250M 4300C

  • 32A

  • 63A

  • 100A

  • 125A

Frame 250 – 50kA ICU

CDM3E-250M 4300C

  • 160A

  • 250A

Frame 400 – 50kA ICU

CDM3E-400M 4300C

  • 400A

Frame 630 – 50kA ICU

CDM3E-630M 4300C

  • 630A

Frame 800 – 50kA ICU

CDM3E-800M 4300C

  • 800A

Applications

  • Industrial power distribution systems

  • Switchgear assemblies

  • Manufacturing plants

  • Commercial electrical infrastructure

  • Heavy machinery protection

  • Data centers and critical power systems

  • Industrial automation systems

  • Energy distribution and utility installations

The Delixi CDM3E 4 Pole Electronic MCCB Series delivers intelligent electronic protection, configurable fault management capability, and industrial-grade reliability for demanding electrical protection environments.
