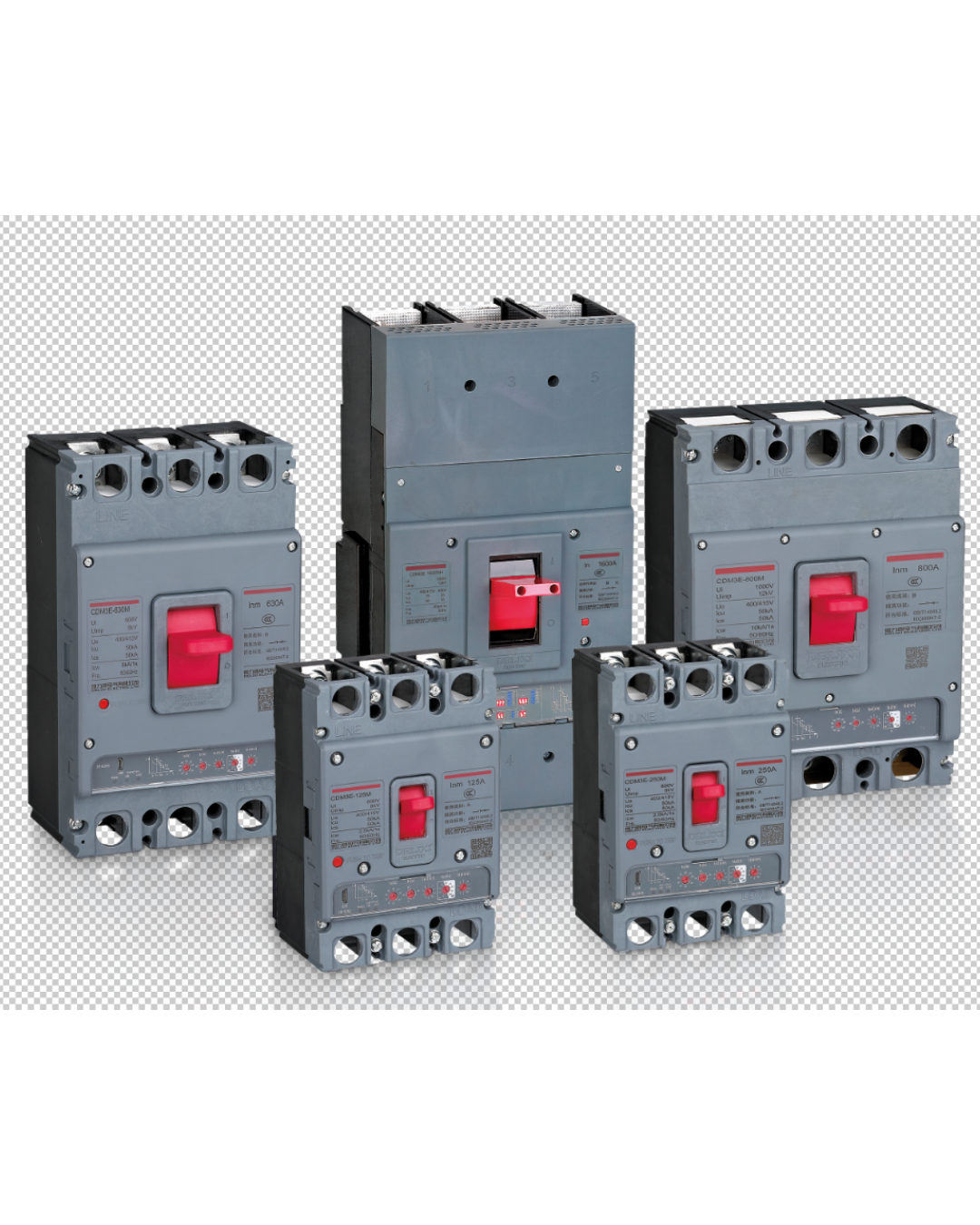

CDM3E Heavy Duty Electronic MCCB – 4 Pole | LSIG Electronic Trip | Adjustable Type | 1000A–1600A | 50kA ICU
The Delixi CDM3E Heavy Duty Electronic Molded Case Circuit Breaker (MCCB) is an advanced industrial protection device engineered for large-scale power distribution systems requiring intelligent protection, high current handling capability, and configurable electronic trip functionality.
Featuring LSIG (Long-Time, Short-Time, Instantaneous, Ground Fault) Electronic Trip technology, the CDM3E series provides comprehensive circuit protection with enhanced fault selectivity and precise operational control.
Unlike conventional thermal-magnetic MCCBs, the electronic protection system enables configurable trip settings for improved coordination, optimized system protection, and reduced equipment downtime.
Designed for high-capacity industrial installations, this 4 Pole (4P) MCCB supports electrical distribution environments requiring neutral protection, intelligent fault management, and dependable operation under demanding load conditions.
Supporting ultra-high current ratings from 1000A to 1600A with a fault interruption capability of 50kA ICU, this MCCB is suitable for mission-critical industrial and commercial power infrastructure.
Manufactured according to IEC 60947-2 international standards, the CDM3E Heavy Duty Electronic MCCB delivers industrial-grade reliability, safety, and intelligent protection capability.
Key Features
✔ Advanced LSIG Electronic Trip Technology
✔ Long-Time overload protection
✔ Short-Time fault protection
✔ Instantaneous short-circuit interruption
✔ Ground fault protection capability
✔ Adjustable electronic protection settings
✔ Ultra-high current handling capacity
✔ Intelligent fault coordination and selectivity
✔ Heavy-duty industrial molded case construction
✔ 4 Pole (4P) configuration
✔ Rated operating frequency: 50/60Hz
✔ Breaking capacity: 50kA ICU
✔ IEC 60947-2 compliant
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Series | CDM3E |
| Product Type | Electronic Molded Case Circuit Breaker (MCCB) |
| Protection Technology | LSIG Electronic Trip |
| Pole Configuration | 4 Pole (4P) |
| Current Range | 1000A – 1600A |
| Frame Size | 1600 |
| Breaking Capacity (ICU) | 50kA |
| Trip Functions | Long-Time / Short-Time / Instantaneous / Ground Fault |
| Adjustment Type | Adjustable Electronic Protection |
| Rated Frequency | 50/60Hz |
| Standard Compliance | IEC 60947-2 |
Available Models
| Model | Current Rating | Frame Size | Breaking Capacity |
|---|---|---|---|
| CDM3E | 1000A | 1600 | 50kA |
| CDM3E | 1250A | 1600 | 50kA |
| CDM3E | 1600A | 1600 | 50kA |
Applications
-
Main power distribution panels
-
Industrial manufacturing plants
-
Data centers and critical infrastructure
-
Heavy industrial machinery systems
-
Utility distribution networks
-
Commercial high-load electrical systems
-
Renewable energy installations
-
Large-scale switchgear assemblies
-
Infrastructure requiring intelligent fault protection
The Delixi CDM3E Heavy Duty Electronic MCCB Series delivers intelligent circuit protection, configurable electronic trip functionality, and industrial-grade performance for large-capacity electrical distribution systems requiring advanced protection technology.
