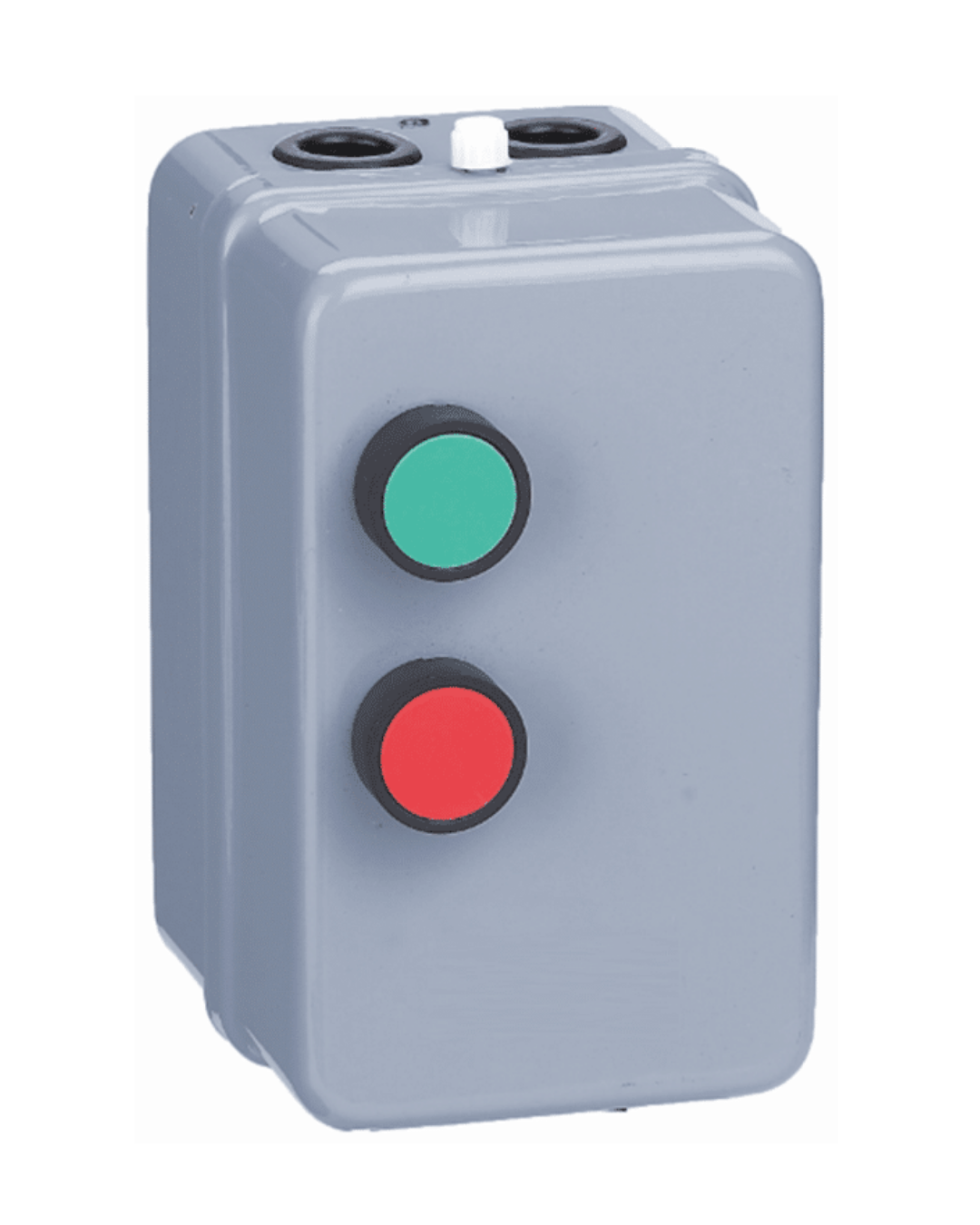

CDS2 Direct-On-Line (DOL) Magnetic Starter – Reliable Motor Starting & Protection Solution
The Delixi CDS2 Magnetic Starter (DOL Starter) is a complete motor control and protection solution designed for safe starting, stopping, and overload protection of three-phase electric motors. Combining a magnetic contactor and thermal overload relay within a robust enclosure, the CDS2 series offers dependable motor operation in industrial, commercial, agricultural, and utility applications.
Manufactured according to IEC 60947-4 standards, the CDS2 DOL Starter provides reliable motor protection against overload conditions while ensuring simple and efficient motor control.
Available in multiple current ranges supporting motors from 0.37kW up to 18.5kW, the CDS2 series is ideal for pumps, compressors, conveyors, fans, blowers, machine tools, and general industrial equipment.
The IP54-rated enclosure protects internal components from dust and water splashes, making it suitable for harsh operating environments.
Key Features
✔ Complete Direct-On-Line (DOL) motor starter solution
✔ Integrated magnetic contactor and overload protection
✔ Suitable for three-phase motor applications
✔ Motor ratings from 0.37kW to 18.5kW
✔ Thermal overload protection included
✔ IEC 60947-4 compliant
✔ IP54 protection level
✔ Available in plastic and metal enclosures
✔ Start/Stop push-button control
✔ Reliable motor switching and protection
✔ Easy installation and maintenance
✔ Suitable for industrial and commercial environments
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Series | CDS2 |
| Product Type | DOL Magnetic Starter |
| Frame Sizes | 18 / 38 / 95 |
| Rated Frequency | 50/60Hz |
| Rated Voltage | Up to 660V |
| Protection Class | IP54 |
| Standard | IEC 60947-4 |
| Enclosure Options | Plastic / Metal |
| Motor Power Range | 0.37kW – 18.5kW |
Available Models
| Model | Current Range | Motor Power |
|---|---|---|
| CDS2s-13B/1.6A | 1–1.6A | 0.37kW |
| CDS2s-13B/2.5A | 1.6–2.5A | 0.75kW |
| CDS2s-13B/4A | 2.5–4A | 1.5kW |
| CDS2s-13B/6A | 4–6A | 2.2kW |
| CDS2s-13B/8A | 5.5–8A | 3kW |
| CDS2s-13B/10A | 7–10A | 4kW |
| CDS2s-13B/13A | 9–13A | 5.5kW |
| CDS2s-32B/18A | 12–18A | 7.5kW |
| CDS2s-32B/25A | 17–25A | 11kW |
| CDS2s | 23–32A | 15kW |
| CDS2s | 30–40A | 18.5kW |
Applications
-
Water pump systems
-
Agricultural irrigation systems
-
Air compressors
-
Industrial fans and blowers
-
Conveyor systems
-
Manufacturing machinery
-
HVAC equipment
-
Workshop machinery
-
Commercial motor control systems
-
Industrial automation applications
Why Choose the Delixi CDS2 DOL Starter?
The Delixi CDS2 Magnetic Starter combines motor starting, switching, and overload protection in one compact unit. Its rugged IP54 enclosure, integrated thermal overload protection, and broad motor compatibility make it an ideal solution for reliable motor control across industrial and commercial installations.
