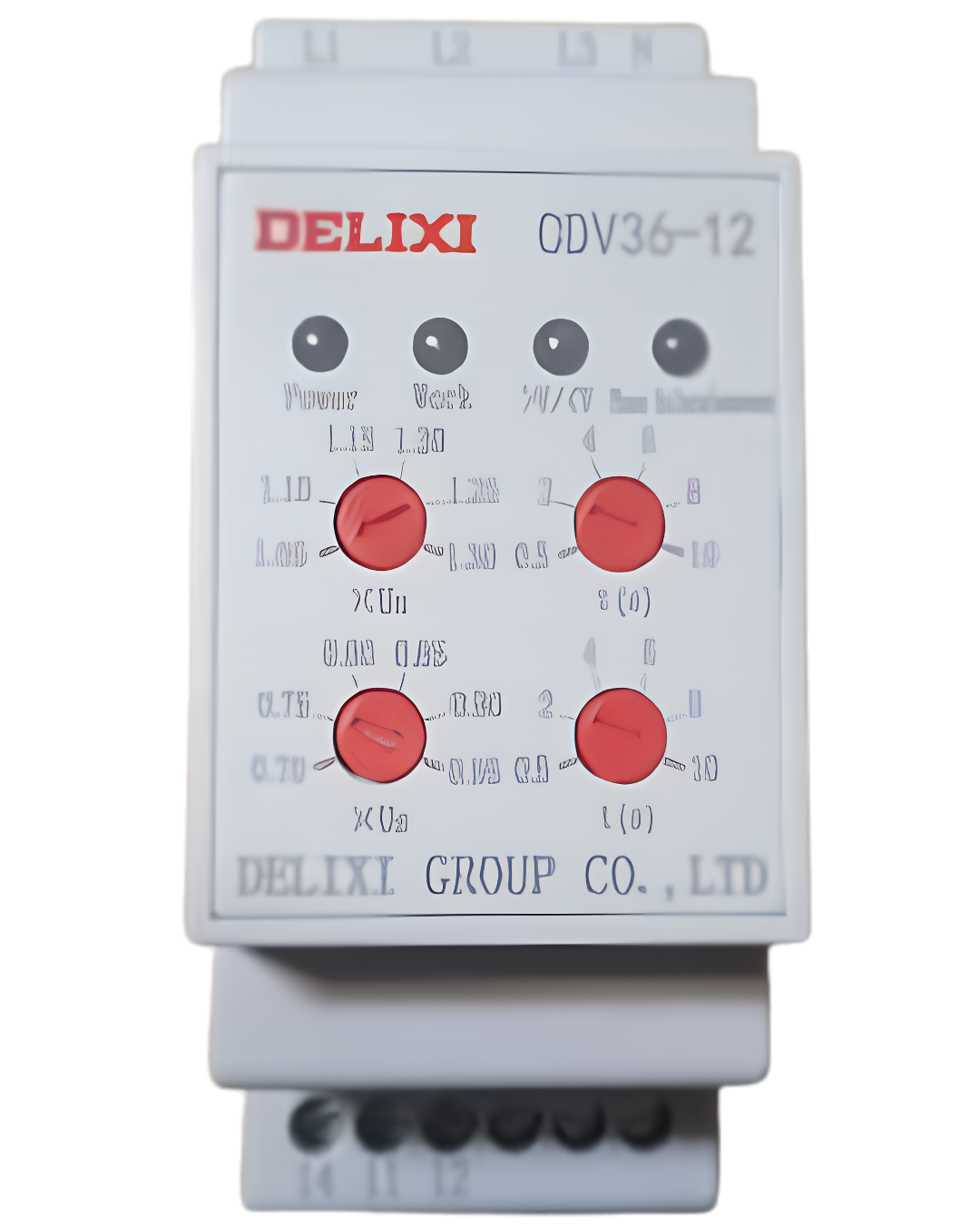

The Delixi CDV36 Protection Relay is a multifunction three-phase monitoring relay designed to protect motors, pumps, compressors, generators, HVAC systems, and industrial equipment from electrical faults. It continuously monitors phase sequence, phase failure, over-voltage, and under-voltage conditions to prevent equipment damage and costly downtime.

The relay automatically detects abnormal voltage conditions and phase faults, helping maintain safe and reliable operation of three-phase electrical systems. Its adjustable settings allow users to customize protection thresholds according to application requirements.

Manufactured according to IEC 60947-4 standards, the CDV36 is suitable for industrial control panels, motor starters, distribution boards, and automation systems where dependable power monitoring is critical.

Key Features

✔ Three-phase voltage monitoring

✔ Phase failure protection

✔ Phase sequence (phase reversal) protection

✔ Over-voltage protection

✔ Under-voltage protection

✔ Adjustable voltage threshold settings

✔ Fast fault detection and response

✔ LED status indication

✔ Protects motors and industrial equipment

✔ DIN rail mounting design

✔ Suitable for 50/60Hz systems

✔ IEC 60947-4 compliant

✔ Compact and reliable industrial design

Technical Specifications

Available Variants

CDV36-12 AC220V

• Operating Voltage: 220V AC

• Functions:

  • Phase Failure Protection

  • Phase Sequence Monitoring

  • Over Voltage Protection

  • Under Voltage Protection

CDV36-12 AC400V

• Operating Voltage: 400V AC

• Functions:

  • Phase Failure Protection

  • Phase Sequence Monitoring

  • Over Voltage Protection

  • Under Voltage Protection

Applications

• Motor protection systems

• Industrial control panels

• HVAC equipment

• Water pumping systems

• Air compressors

• Generator protection

• Manufacturing plants

• Power distribution systems

• Automation and process control

• Three-phase electrical installations

Why Choose the Delixi CDV36 Protection Relay?

The Delixi CDV36 Protection Relay provides comprehensive monitoring of three-phase power systems by detecting voltage abnormalities and phase faults before they can damage equipment. Its combination of phase failure, phase sequence, over-voltage, and under-voltage protection makes it an essential safety component for industrial and commercial electrical installations.
