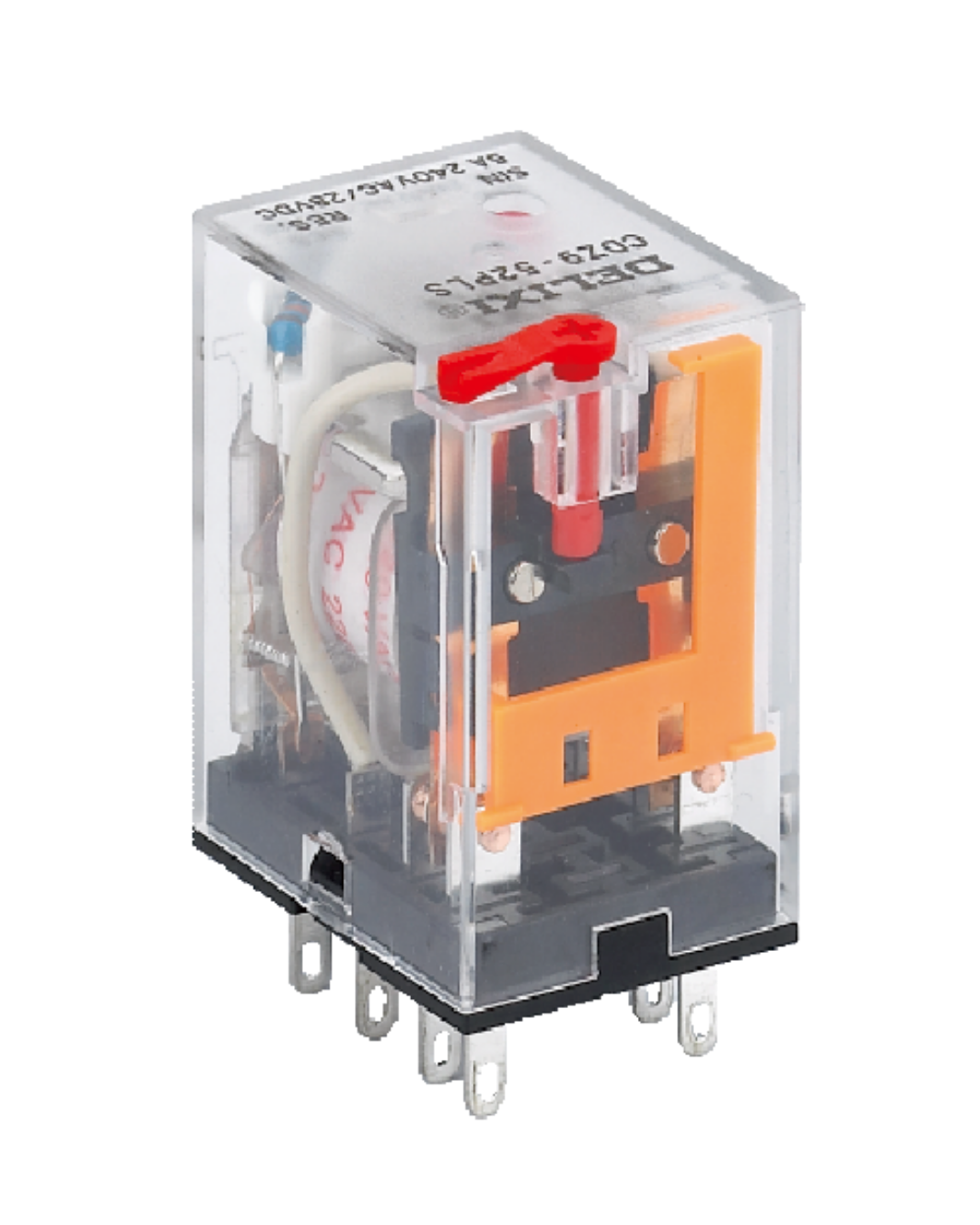

The Delixi CDZ9 Miniature Relay is a versatile plug-in electromagnetic relay designed for industrial automation, motor control circuits, electrical panels, PLC systems, and control applications. Its compact design, transparent housing, and reliable switching performance make it ideal for both industrial and commercial control systems.

The CDZ9 series is available in 5A and 10A contact ratings, with 8-pin and 14-pin configurations, supporting a wide range of AC and DC control voltages. Built according to IEC 60947-4 standards, it provides dependable signal switching, control isolation, and automation functionality in demanding environments.

With multiple coil voltage options including 12VDC, 24VDC, and 220VAC, the CDZ9 relay offers excellent flexibility for panel builders, OEM manufacturers, machine builders, and automation engineers.

Key Features

✔ Compact industrial plug-in relay design

✔ Available in 8-pin and 14-pin configurations

✔ Contact ratings of 5A and 10A

✔ Coil voltage options:

• 12VDC

• 24VDC

• 220VAC

✔ Transparent housing for easy status inspection

✔ Fast and reliable switching operation

✔ Suitable for PLC and automation systems

✔ Excellent electrical isolation

✔ Easy replacement and maintenance

✔ Long mechanical and electrical service life

✔ IEC 60947-4 compliant

✔ Ideal for industrial control panels

Technical Specifications

Available Variants

12VDC Coil Models

• CDZ9-54P DC12V – 5A – 8 Pin

• CDZ9-54P DC12V – 5A – 14 Pin

• CDZ9-54P DC12V – 10A – 8 Pin

• CDZ9-54P DC12V – 10A – 14 Pin

24VDC Coil Models

• CDZ9-54P DC24V – 5A – 8 Pin

• CDZ9-54P DC24V – 5A – 14 Pin

• CDZ9-54P DC24V – 10A – 8 Pin

• CDZ9-54P DC24V – 10A – 14 Pin

220VAC Coil Models

• CDZ9-54P AC220V – 5A – 8 Pin

• CDZ9-54P AC220V – 5A – 14 Pin

• CDZ9-54P AC220V – 10A – 8 Pin

• CDZ9-54P AC220V – 10A – 14 Pin

Applications

• Industrial automation systems

• PLC control panels

• Motor control circuits

• Building automation systems

• Electrical switchboards

• HVAC control systems

• Process control equipment

• Machine automation

• Signal switching applications

• Power distribution control systems

Why Choose the Delixi CDZ9 Miniature Relay?

The Delixi CDZ9 Miniature Relay offers dependable switching performance, flexible coil voltage options, and multiple pin configurations in a compact industrial-grade design. Its reliability, ease of installation, and compatibility with automation systems make it an ideal choice for electrical control panels and industrial automation projects.
