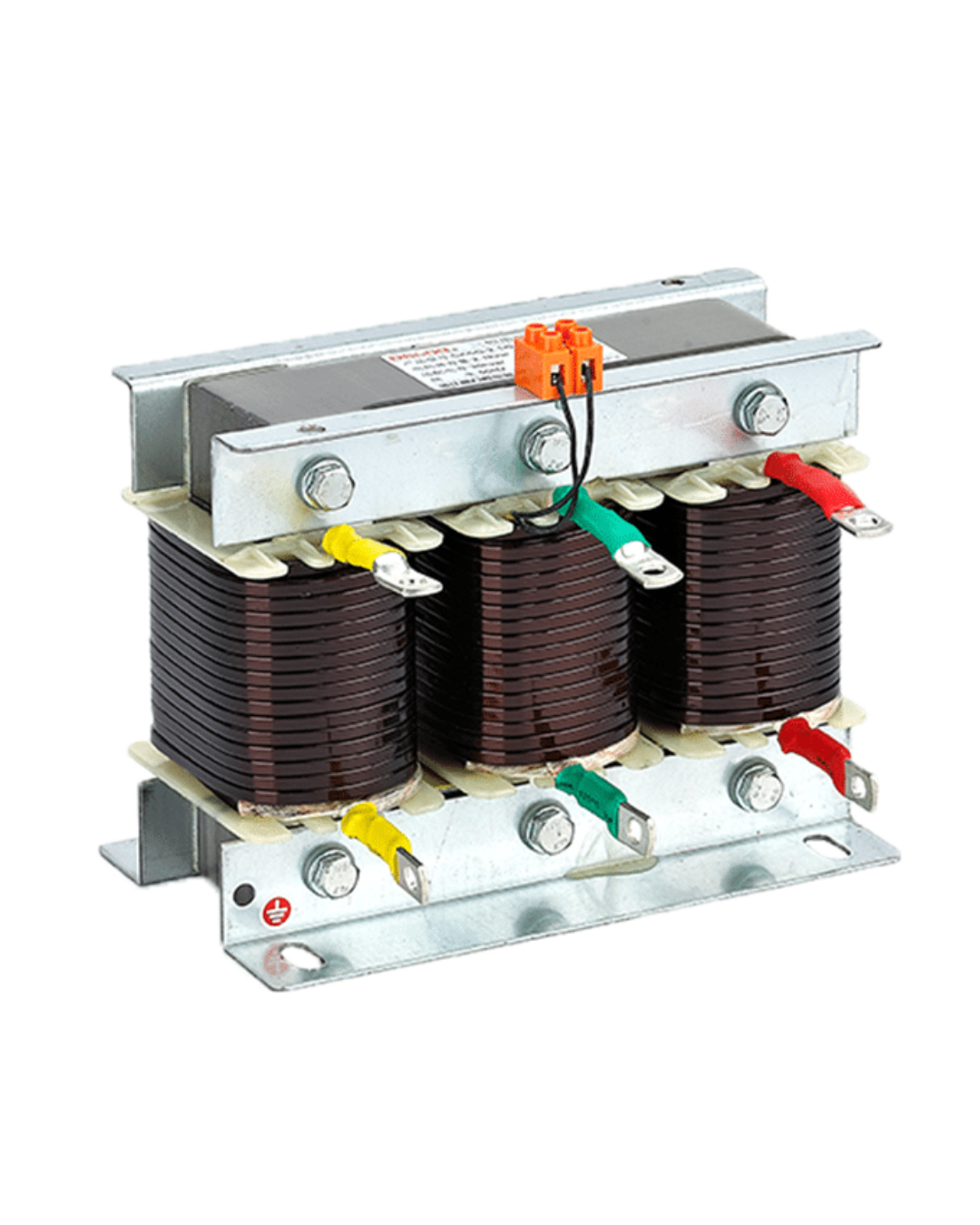

The Delixi CKSG 7% Detuned Reactor is a high-performance harmonic filtering reactor designed for Automatic Power Factor Correction (APFC) panels, capacitor banks, and reactive power compensation systems. It is specifically engineered to work with low-voltage capacitors to suppress harmonic currents and prevent resonance within electrical distribution networks.

Modern industrial facilities often contain nonlinear loads such as VFDs, UPS systems, inverters, welding equipment, and automation systems that generate harmonics. The CKSG 7% Detuned Reactor protects capacitor banks from harmonic overload, improves power quality, and extends the operational life of both capacitors and electrical equipment.

Designed according to IEC 60289, the CKSG series is available with copper or aluminum windings and is optimized for 480V systems.

Key Features

✔ 7% detuning factor for harmonic suppression

✔ Protects capacitor banks from harmonic overload

✔ Prevents resonance between capacitors and network harmonics

✔ Enhances APFC system reliability

✔ Improves overall power quality

✔ Suitable for industrial and commercial installations

✔ Available with copper or aluminum windings

✔ Designed for low-voltage power factor correction systems

✔ Reduces overheating and capacitor failure

✔ Increases capacitor bank lifespan

✔ Heavy-duty industrial construction

✔ IEC 60289 compliant

Technical Specifications

Available Variants

Applications

• Automatic Power Factor Correction (APFC) Panels

• Capacitor Banks

• Harmonic Filtering Systems

• Industrial Manufacturing Plants

• Commercial Buildings

• Data Centers

• HVAC Systems

• Renewable Energy Installations

• Water Treatment Facilities

• Power Distribution Networks

• Motor Control Centers

• Electrical Utilities

Benefits

• Suppresses harmful harmonic currents

• Prevents capacitor bank resonance

• Improves power factor correction efficiency

• Extends capacitor life

• Reduces maintenance costs

• Improves electrical system stability

• Enhances energy efficiency

• Protects sensitive electrical equipment

Why Choose the Delixi CKSG 7% Detuned Reactor?

The Delixi CKSG Detuned Reactor is an essential component in modern APFC systems where harmonics can significantly reduce capacitor performance and system reliability. By providing effective harmonic filtering and resonance protection, the CKSG series ensures long-term stability, enhanced power quality, and maximum capacitor bank performance.
