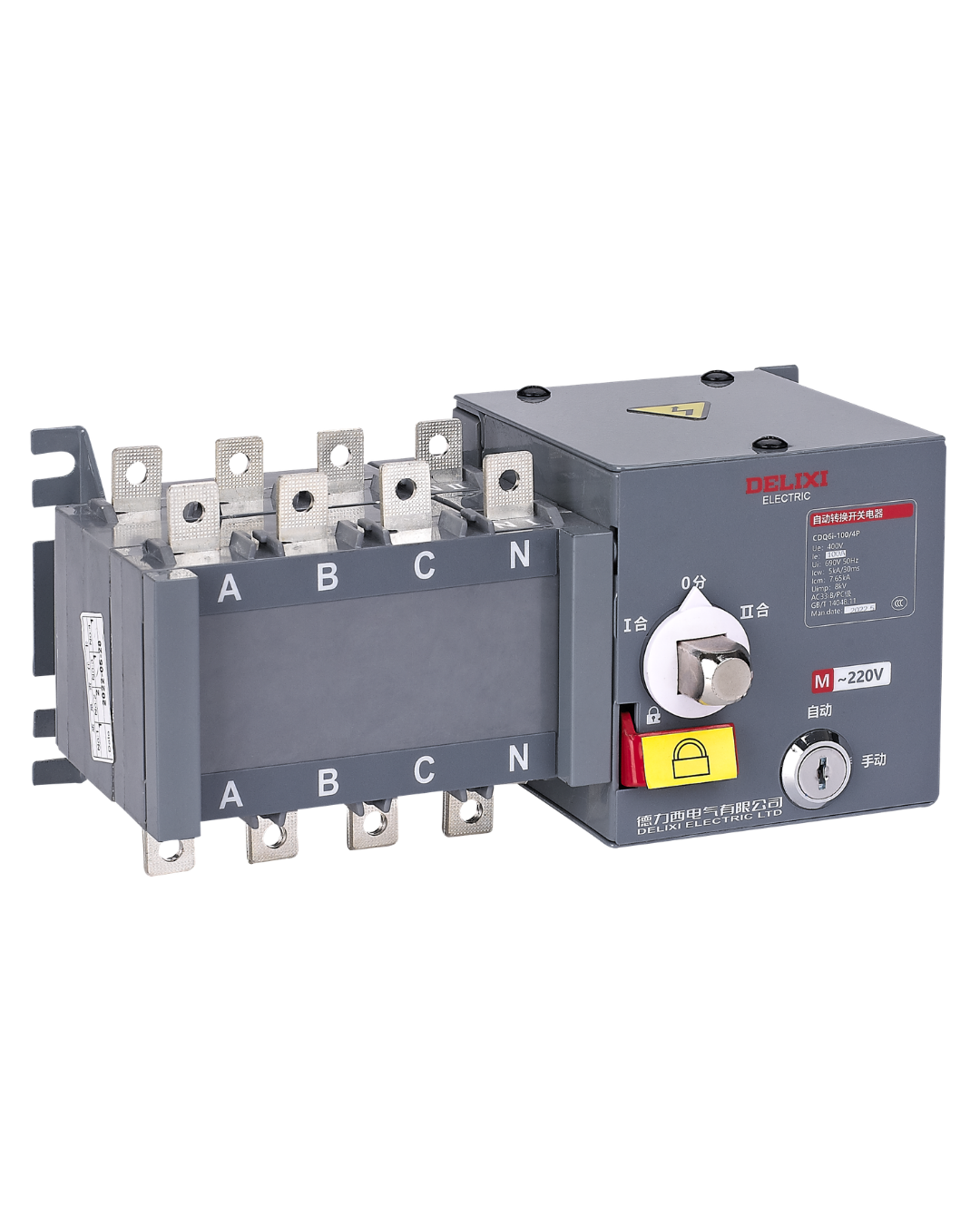

CDQ6i Smart Automatic Transfer Switch (ATS) – LED Display | Timer | UV/OV Protection | 4 Pole | 100A–630A
The Delixi CDQ6i Smart Automatic Transfer Switch (ATS) is an intelligent power management solution designed for uninterrupted electrical supply by automatically transferring loads between the primary utility source and backup power systems during outages or voltage abnormalities.
Unlike standard ATS solutions, the CDQ6i Series incorporates LED monitoring display functionality and built-in timer control, providing improved visibility, operational flexibility, and enhanced power management capabilities.
The integrated protection system continuously monitors electrical conditions and automatically responds to:
-
Phase failure conditions
-
Under-voltage (UV) situations
-
Over-voltage (OV) abnormalities
-
Main power interruptions
When abnormal conditions occur, the ATS transfers the electrical load to the backup source and automatically restores utility power once normal conditions return.
Designed for demanding industrial and commercial installations, the CDQ6i series supports critical infrastructure requiring uninterrupted power continuity and intelligent transfer operation.
Manufactured according to IEC 60947-6-1 international standards, the Delixi CDQ6i ATS delivers industrial-grade reliability and advanced protection capability.
Key Features
✔ Intelligent automatic power transfer operation
✔ Built-in LED status display
✔ Integrated timer functionality
✔ Automatic utility-to-backup source switching
✔ Phase failure monitoring and protection
✔ Under Voltage (UV) protection
✔ Over Voltage (OV) protection
✔ Intelligent power monitoring system
✔ Heavy-duty industrial ATS mechanism
✔ 4 Pole (4P) configuration
✔ Rated operating frequency: 50/60Hz
✔ IEC 60947-6-1 compliant
✔ Suitable for critical power continuity systems
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Series | CDQ6i |
| Product Type | Smart Automatic Transfer Switch (ATS) |
| Pole Configuration | 4 Pole (4P) |
| Current Ratings | 100A – 630A |
| Operating Frequency | 50/60Hz |
| Monitoring Display | LED Display |
| Timer Function | Built-In |
| Protection Features | UV / OV / Phase Failure |
| Switching Function | Automatic Source Transfer |
| Standard Compliance | IEC 60947-6-1 |
Available Models
| Model | Pole | Current Rating |
|---|---|---|
| CDQ6i-100/4P | 4 Pole | 100A |
| CDQ6i-160/4P | 4 Pole | 160A |
| CDQ6i-250/4P | 4 Pole | 250A |
| CDQ6i-630/4P | 4 Pole | 400A |
| CDQ6i-630/4P | 4 Pole | 630A |
Applications
-
Generator backup systems
-
Commercial buildings
-
Industrial facilities
-
Hospitals and healthcare infrastructure
-
Data centers
-
Telecom installations
-
Manufacturing plants
-
Solar backup systems
-
UPS power systems
-
Mission-critical electrical systems
The Delixi CDQ6i Smart ATS Series combines intelligent monitoring, automatic source transfer capability, advanced protection functionality, and industrial-grade reliability to ensure uninterrupted power continuity for critical electrical systems.
