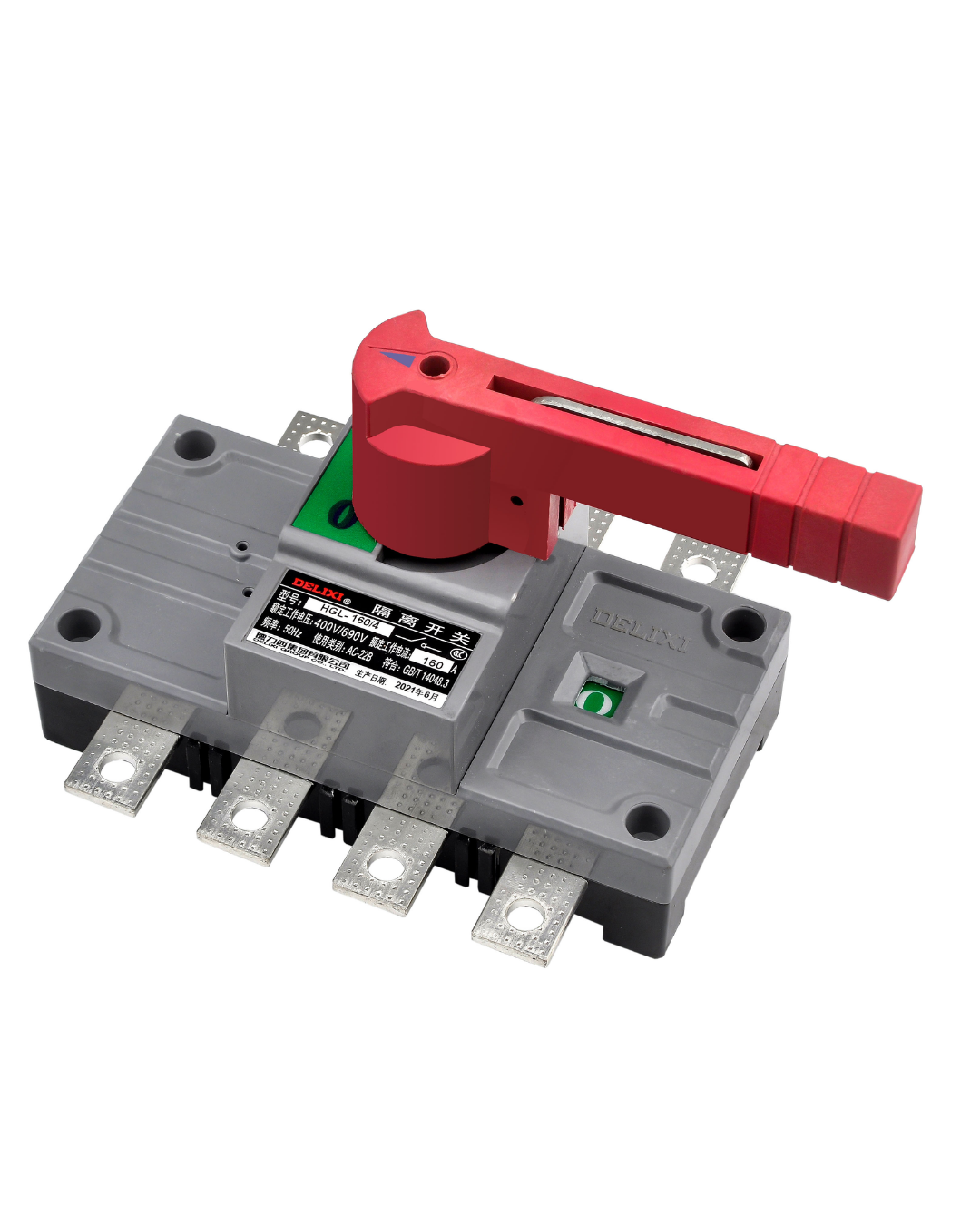

HGL 3 Pole Load Break Switch – 100A to 1600A Industrial Isolation & Power Switching Solution
The Delixi HGL Series Load Break Switch (LBS) is engineered for safe power isolation, circuit disconnection, and industrial electrical switching applications. Designed for demanding commercial and industrial environments, the HGL series provides dependable load switching performance with high operational reliability.
Built according to IEC 60947-2 international standards, the HGL Load Break Switch delivers secure electrical isolation and controlled switching for low-voltage distribution systems, industrial machinery, power panels, and energy infrastructure.
Supporting current ratings from 100A up to 1600A, with maximum ratings available up to 3150A, this switch is suitable for small industrial systems through heavy-duty power distribution installations.
Its robust construction and AC-22A utilization category capability make it ideal for switching mixed resistive and inductive loads while ensuring operational safety and equipment protection.
Key Features
✔ Heavy-duty industrial load break switch
✔ Safe electrical isolation and load disconnection
✔ 3 Pole switching configuration
✔ Current ratings from 100A to 1600A
✔ Maximum ratings available up to 3150A
✔ Rated operational voltage up to 690VAC
✔ Suitable for industrial power distribution systems
✔ AC-22A utilization category
✔ IEC 60947-2 compliant design
✔ High reliability switching mechanism
✔ Durable industrial-grade construction
✔ External operating handle available upon request
✔ Suitable for low-voltage electrical systems
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Series | HGL |
| Product Type | Load Break Switch (LBS) |
| Pole Configuration | 3 Pole |
| Rated Frequency | 50/60Hz |
| Maximum Continuous Voltage | 690VAC |
| Utilization Category | AC-22A |
| Standard | IEC 60947-2 |
| Current Range | 100A – 1600A |
| Maximum Available Rating | Up to 3150A |
Available Models
| Model | Pole | Current Rating |
|---|---|---|
| HGL-100/3 | 3 Pole | 100A |
| HGL-160/3 | 3 Pole | 160A |
| HGL-200/3 | 3 Pole | 200A |
| HGL-315/3 | 3 Pole | 315A |
| HGL-400/3 | 3 Pole | 400A |
| HGL-630/3 | 3 Pole | 630A |
| HGL-800/3 | 3 Pole | 800A |
| HGL-1250/3 | 3 Pole | 1250A |
| HGL-1600/3 | 3 Pole | 1600A |
Applications
-
Industrial power distribution systems
-
Electrical control panels
-
Commercial buildings
-
Manufacturing facilities
-
Generator isolation systems
-
Solar power installations
-
Motor control systems
-
Industrial automation infrastructure
-
Switchgear panels
-
Electrical safety isolation systems
The Delixi HGL Load Break Switch Series provides secure circuit isolation, dependable switching performance, and reliable industrial power management for demanding electrical environments.
