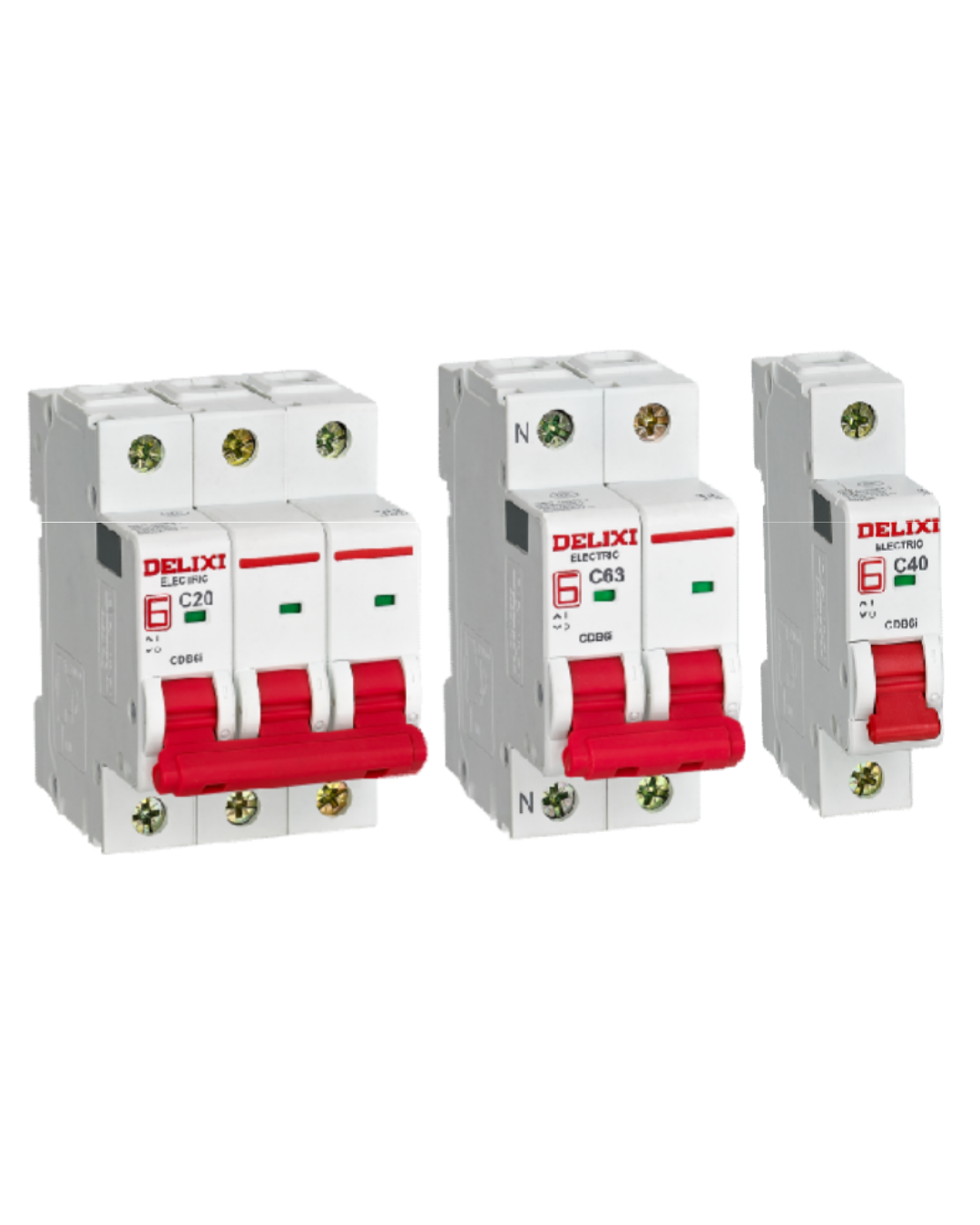

CDB6iH Miniature Circuit Breaker (MCB) | 10kA Breaking Capacity | 1A–63A | 1P/2P/3P/4P
The Delixi CDB6iH Miniature Circuit Breaker (MCB) is a high-performance electrical protection device designed to provide reliable protection against overloads and short circuits in residential, commercial, and industrial power distribution systems.
Featuring a compact 18mm modular design, high 10kA breaking capacity, and multiple pole configurations, the CDB6iH / DZ47-125 series ensures enhanced safety and operational reliability for demanding electrical installations.
Designed according to international quality standards, this MCB series offers flexible current ratings and multiple tripping curve options for a wide range of applications.
Key Features:
✔ High breaking capacity of 10kA
✔ Compact 18mm modular design
✔ Available in 1 Pole (1P), 2 Pole (2P), 3 Pole (3P), and 4 Pole (4P) configurations
✔ Current ratings from 1A to 63A
✔ Available B, C, and D tripping curves
✔ Reliable protection against overload and short circuit conditions
✔ DIN rail mounting for fast installation
✔ Suitable for residential, commercial, industrial, and distribution panel applications
✔ Manufactured according to IEC 60947-2 standards
Technical Specifications:
| Parameter | Specification |
|---|---|
| Product Series | CDB6iH / DZ47-125 |
| Product Type | Miniature Circuit Breaker (MCB) |
| Module Width | 18mm |
| Rated Current (In) | 1A, 2A, 4A, 6A, 10A, 16A, 20A, 25A, 32A, 40A, 50A, 63A |
| Pole Options | 1P, 2P, 3P, 4P |
| Breaking Capacity | 10kA |
| Tripping Curve | B, C, D Curves |
| Installation Type | DIN Rail |
| Standard Compliance | IEC 60947-2 |
Available Models:
CDB6RH1C – 1 Pole (1P)
-
Current Ratings: 10A / 16A / 20A / 25A / 32A / 40A / 63A
-
Breaking Capacity: 10kA
CDB6RH2C – 2 Pole (2P)
-
Current Ratings: 6A / 10A / 16A / 20A / 25A / 32A / 40A / 63A
-
Breaking Capacity: 10kA
CDB6RH3C – 3 Pole (3P)
-
Current Ratings: 6A / 10A / 16A / 20A / 25A / 32A / 40A / 63A
-
Breaking Capacity: 10kA
CDB6RH4C – 4 Pole (4P)
-
Current Ratings: 10A / 16A / 20A / 25A / 32A / 40A / 63A
-
Breaking Capacity: 10kA
Applications:
-
Residential electrical distribution systems
-
Commercial buildings
-
Industrial control panels
-
Power distribution boards
-
Equipment and circuit protection systems
The Delixi CDB6iH / DZ47-125 Series provides dependable circuit protection with superior performance, compact installation, and international-standard safety for modern electrical infrastructure.
