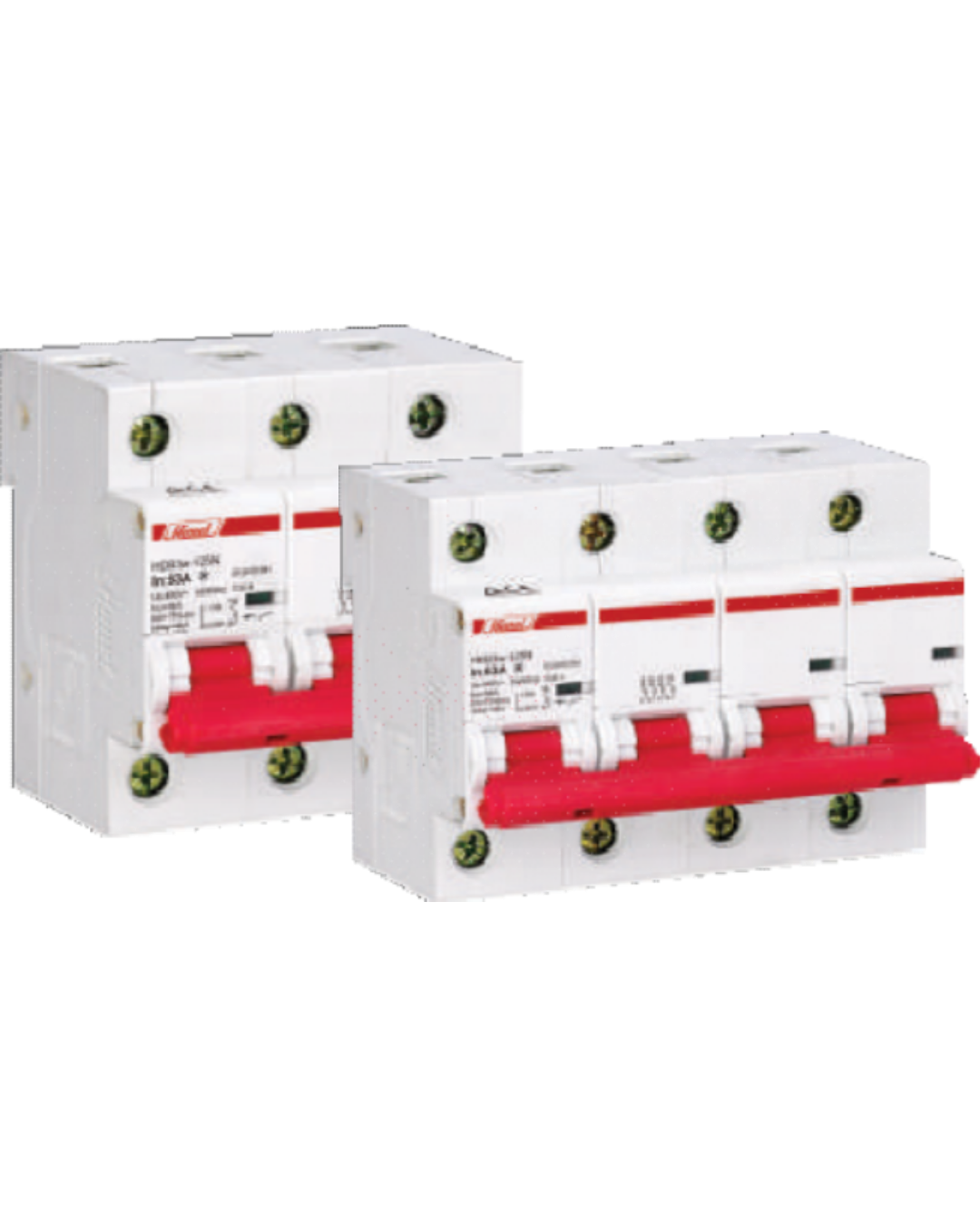

DZ47-125 Miniature Circuit Breaker (MCB) | 63A–125A | 1P/2P/3P/4P | Up to 10kA Breaking Capacity
The Delixi DZ47-125 Miniature Circuit Breaker (MCB) is a heavy-duty electrical protection device engineered to safeguard electrical systems from overload and short-circuit conditions. Designed for higher current applications, the DZ47-125 series delivers reliable circuit protection for residential, commercial, industrial, and power distribution installations.
Featuring a wider 27mm modular design, multiple pole configurations, and high current ratings up to 125A, this series is ideal for applications requiring robust performance and enhanced protection capabilities.
Built according to international electrical safety standards, the DZ47-125 ensures operational reliability, installation flexibility, and long-term durability.
Key Features:
✔ Heavy-duty 27mm modular design
✔ Available current ratings: 63A, 80A, 100A, and 125A
✔ Pole configurations from 1 Pole (1P) to 4 Pole (4P)
✔ High breaking capacity: 6kA to 10kA
✔ Available B Curve, C Curve, and D Curve tripping characteristics
✔ Reliable overload and short-circuit protection
✔ DIN rail mounting for convenient installation
✔ Suitable for industrial, commercial, and power distribution applications
✔ Manufactured according to IEC 60947-2 standards
Technical Specifications:
| Parameter | Specification |
|---|---|
| Product Series | DZ47-125 |
| Product Type | Miniature Circuit Breaker (MCB) |
| Module Width | 27mm |
| Rated Current (In) | 63A, 80A, 100A, 125A |
| Pole Configuration | 1P, 2P, 3P, 4P |
| Breaking Capacity | 6kA – 10kA |
| Tripping Curve | B, C, D Curves |
| Installation Type | DIN Rail |
| Standard Compliance | IEC 60947-2 |
Available Models:
DZ471253C80
-
Type: 3 Pole (3P)
-
Current Rating: 80A
-
Breaking Capacity: 10kA
DZ471253C100
-
Type: 3 Pole (3P)
-
Current Rating: 100A
-
Breaking Capacity: 10kA
DZ471253C125
-
Type: 3 Pole (3P)
-
Current Rating: 125A
-
Breaking Capacity: 10kA
DZ471254C80
-
Type: 4 Pole (4P)
-
Current Rating: 80A
-
Breaking Capacity: 10kA
DZ471254C100
-
Type: 4 Pole (4P)
-
Current Rating: 100A
-
Breaking Capacity: 10kA
DZ471254C125
-
Type: 4 Pole (4P)
-
Current Rating: 125A
-
Breaking Capacity: 10kA
Applications:
-
Industrial power distribution systems
-
Commercial electrical installations
-
Electrical control panels
-
Heavy-duty machinery protection
-
Distribution boards and switchgear systems
The Delixi DZ47-125 Miniature Circuit Breaker Series provides dependable protection, superior safety performance, and reliable operation for demanding electrical environments.
