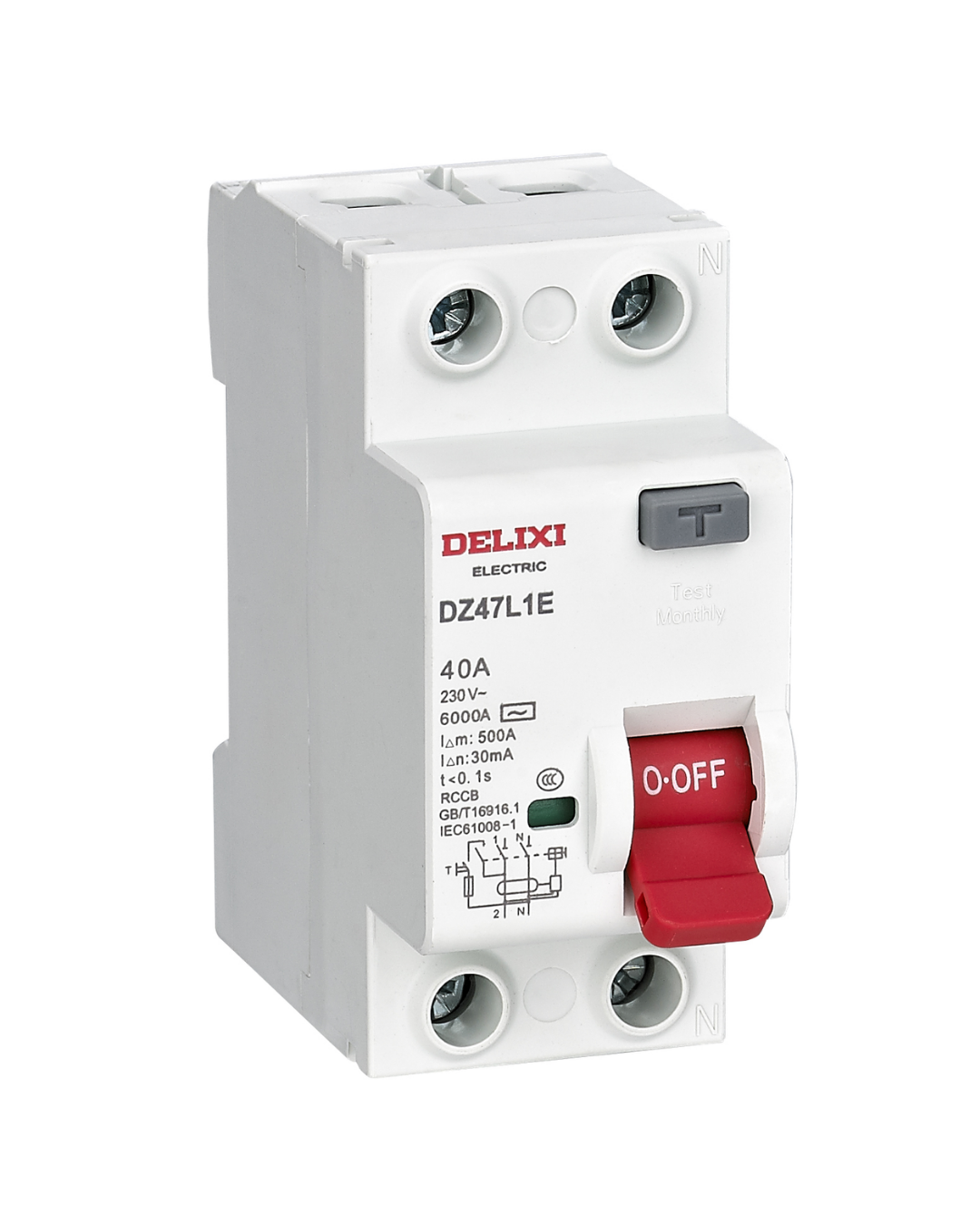

DZ47L1E RCCB Residual Current Circuit Breaker | 2P & 4P | 10A–100A | 30mA–300mA
The Delixi DZ47L1E Residual Current Device (RCCB / ELCB) is a safety protection device designed to protect people and electrical installations from earth leakage currents, electric shock hazards, and insulation faults. Engineered for residential, commercial, and industrial electrical systems, the DZ47L1E series enhances electrical safety by automatically disconnecting power when leakage current exceeds the specified threshold.
Available in both 2 Pole (2P) and 4 Pole (4P) configurations, with multiple current ratings and sensitivity options, this RCCB provides dependable protection for modern electrical distribution systems.
Manufactured according to international safety standards, the DZ47L1E series ensures reliable operation and long-term protection for people and equipment.
Key Features:
✔ Protection against earth leakage and electric shock
✔ Available current ratings from 10A to 100A
✔ Pole configurations: 2 Pole (2P) and 4 Pole (4P)
✔ Residual current sensitivity options: 30mA / 100mA / 300mA
✔ Fast automatic disconnection during leakage faults
✔ Enhanced electrical safety for residential and commercial applications
✔ Suitable for distribution boards and power circuits
✔ Compact DIN rail installation design
✔ Manufactured according to IEC 61008-1 standards
Technical Specifications:
| Parameter | Specification |
|---|---|
| Product Series | DZ47L1E |
| Product Type | RCCB / ELCB (Residual Current Circuit Breaker) |
| Rated Current (In) | 10A, 16A, 25A, 32A, 40A, 63A, 80A, 100A |
| Pole Configuration | 2P, 4P |
| Residual Current Sensitivity | 30mA / 100mA / 300mA |
| Protection Function | Earth Leakage Protection |
| Installation Type | DIN Rail |
| Standard Compliance | IEC 61008-1 |
Available Models:
2 Pole (2P)
DZ47L1E – 16A
-
Sensitivity: 30mA / 300mA
DZ47L1E – 20A
-
Sensitivity: 30mA / 300mA
DZ47L1E – 25A
-
Sensitivity: 30mA / 300mA
DZ47L1E – 32A
-
Sensitivity: 30mA / 300mA
DZ47L1E – 40A
-
Sensitivity: 30mA / 300mA
DZ47L1E – 63A
-
Sensitivity: 30mA / 300mA
4 Pole (4P)
DZ47L1E – 16A
-
Sensitivity: 30mA / 300mA
DZ47L1E – 20A
-
Sensitivity: 30mA / 300mA
DZ47L1E – 25A
-
Sensitivity: 30mA / 300mA
DZ47L1E – 32A
-
Sensitivity: 30mA / 300mA
DZ47L1E – 40A
-
Sensitivity: 30mA / 300mA
DZ47L1E – 63A
-
Sensitivity: 30mA / 300mA
Applications:
-
Residential electrical installations
-
Commercial buildings
-
Industrial distribution systems
-
Distribution boards and panel protection
-
Leakage current protection systems
-
Electrical shock prevention systems
The Delixi DZ47L1E RCCB / ELCB Series provides reliable residual current protection, improved operational safety, and dependable fault isolation for modern electrical infrastructure.
